NEW 'STONE' GENERATION COMING

The New Stone Era Has Arrived

Huayan Fifth Generation Scanner, Making Stone Sales Simple

More Integrated | More Convenient | More Realistic

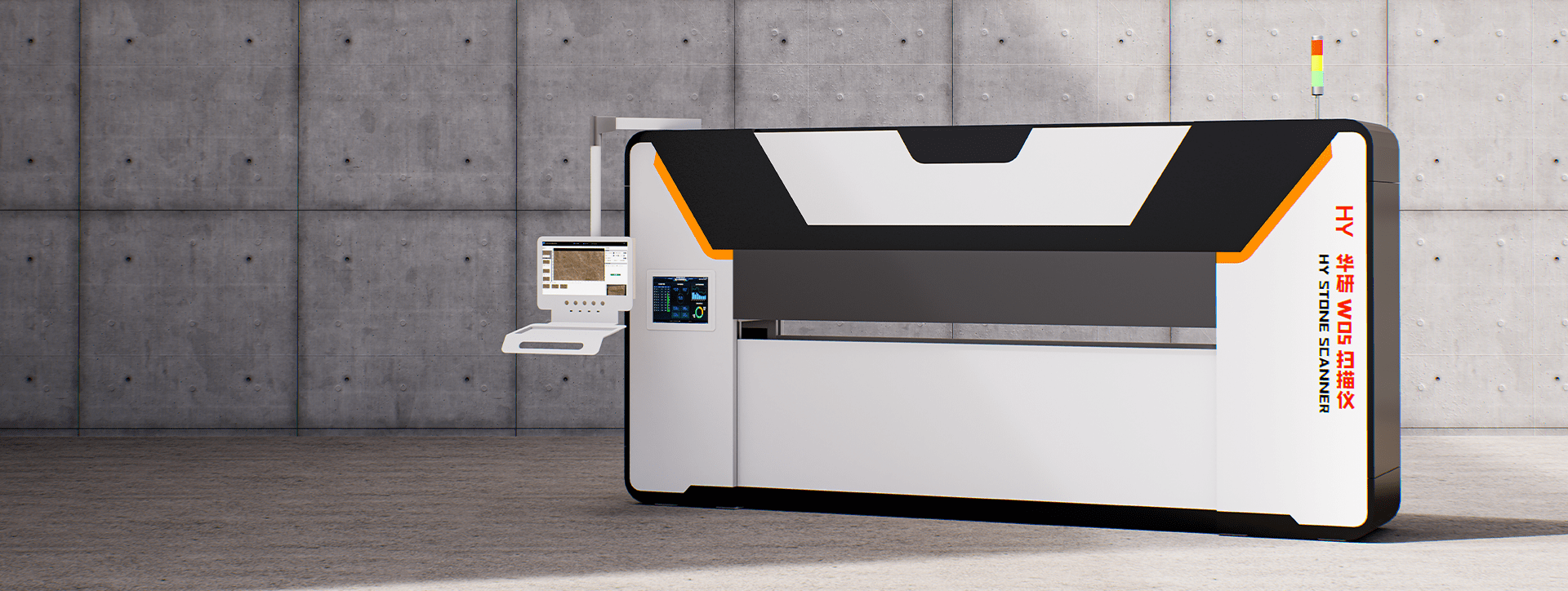

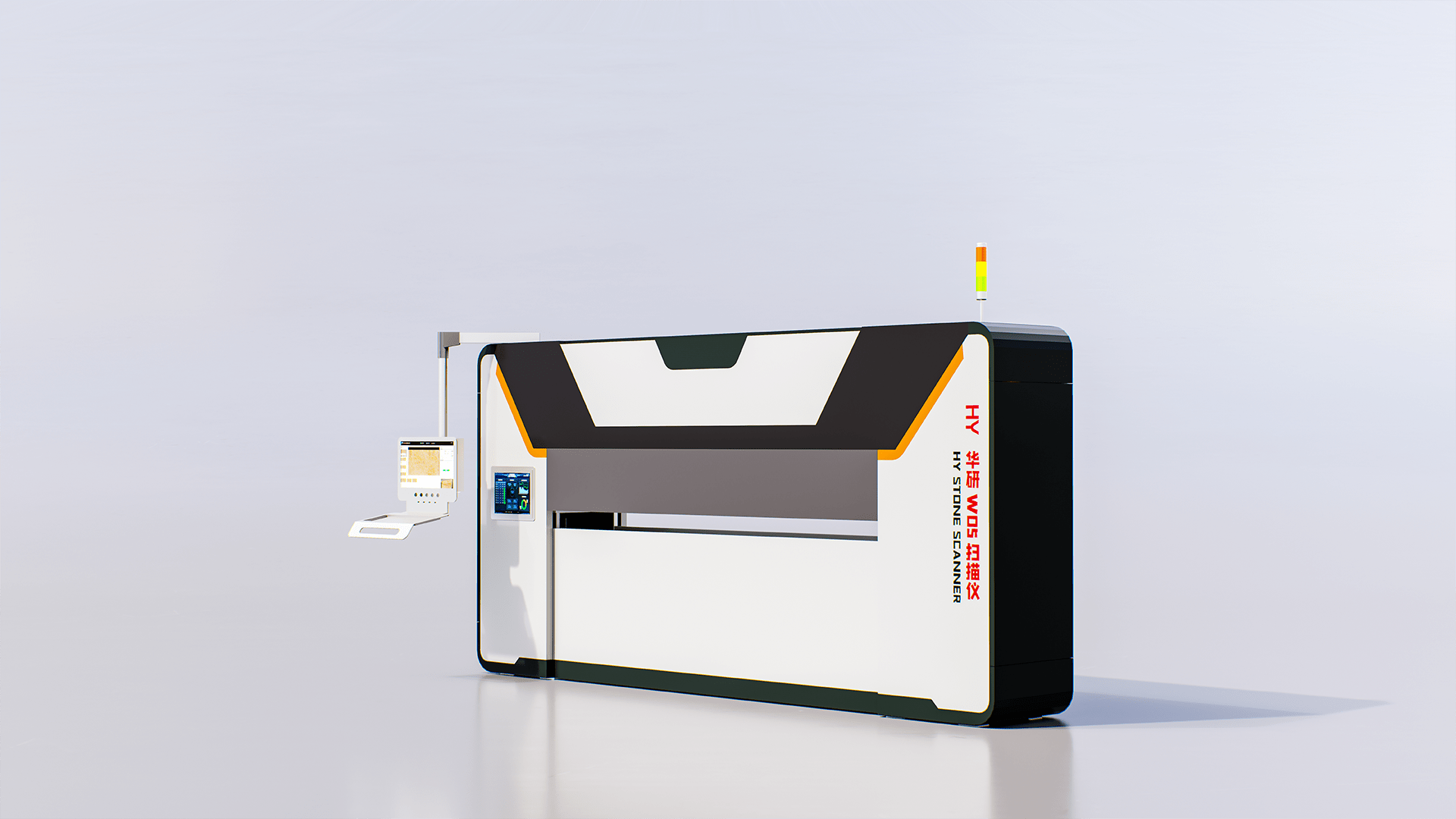

Fifth Generation Scanner

FGFA

Fifth Generation, New Era

The fifth-generation Huayan high-definition stone scanner is built by integrating Huayan's most advanced software system into the basic hardware model and equipment of the original scanner. From generation 1 to 5, with more advanced and precise equipment iterations, it brings a more user-friendly WYSIWYG full-link stone solution

98%

Color Restoration

96DPI

Image Clarity

Plug and Play

Installation Convenience

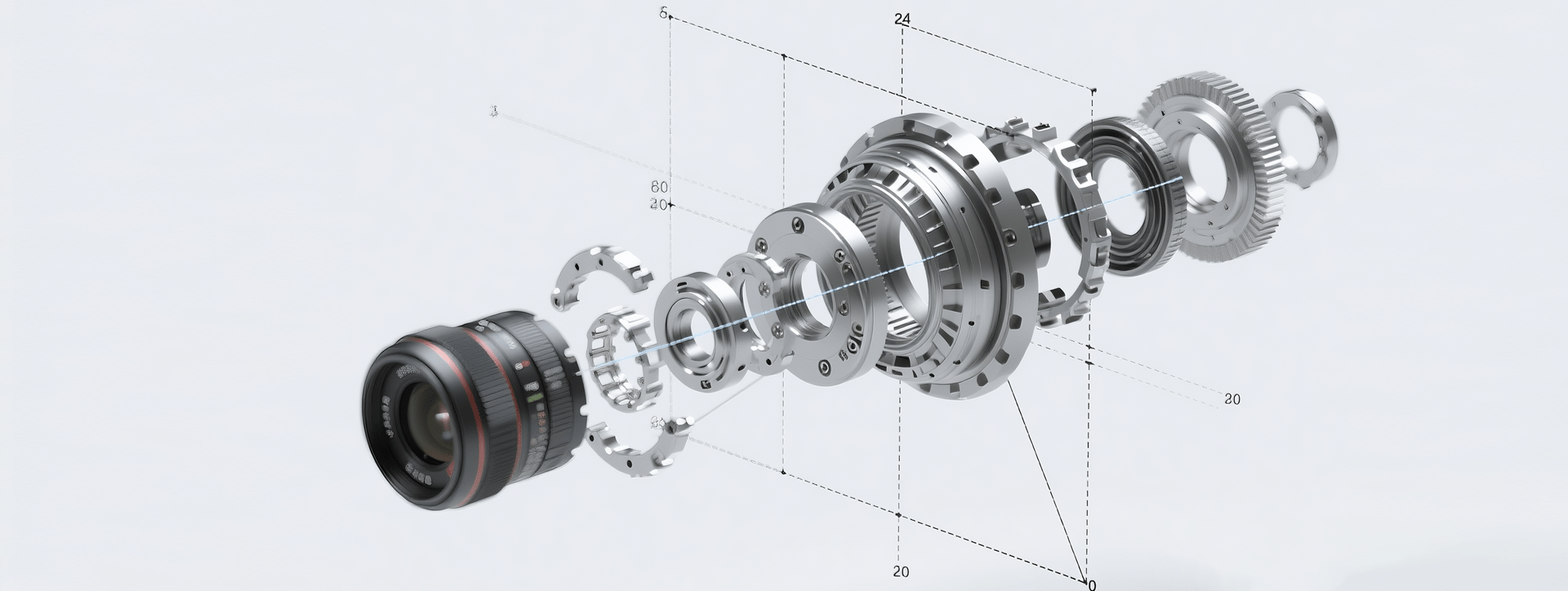

Top-Grade Optical Hardware

Full stack digitalization.

The scanner hardware consists of color 3CCD line scan camera, self-developed light source (lens condensing LED line array), custom lens, data memory card, industrial control computer, encoder and other hardware modules.

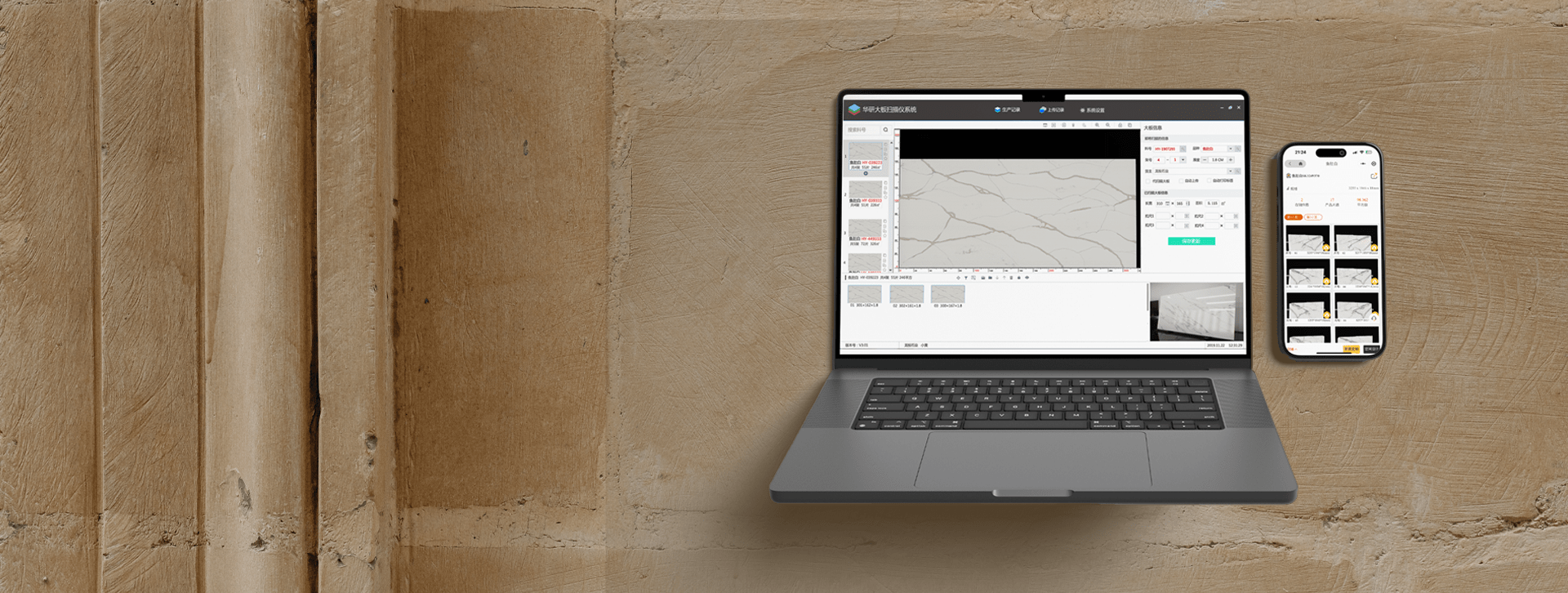

Software Adaptation

Closed-loop scanning and upload process.

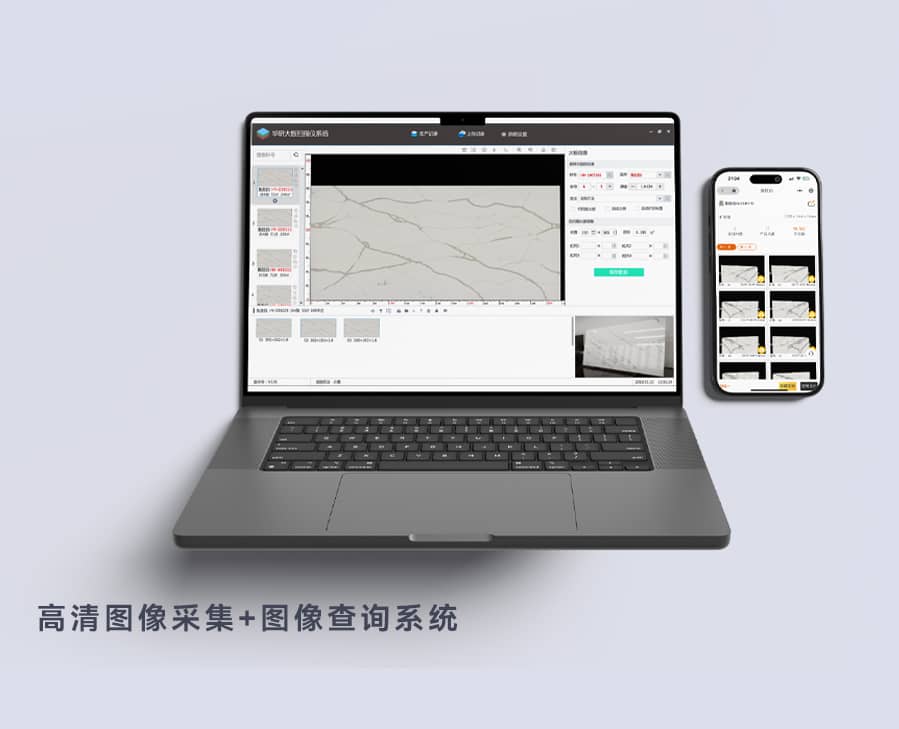

Built-in image acquisition system/image query system, through Huayan Technology's advanced algorithm, automatically calculates the generated stone graphics' size, deduction, slab number and other tedious steps, while synchronously uploading to the cloud image query system, scan and save immediately, seamlessly connecting to the stone online platform.

Fifth Generation

All-Round Excellence.

Can continuously collect stone slabs within the range of length 3.6m * width 2.2m, and through algorithm software processing, output the final color stone image with very close color to the actual slab and clear texture.

HD Images

HD restoration of stone original appearance

WYSIWYG HD visual experience

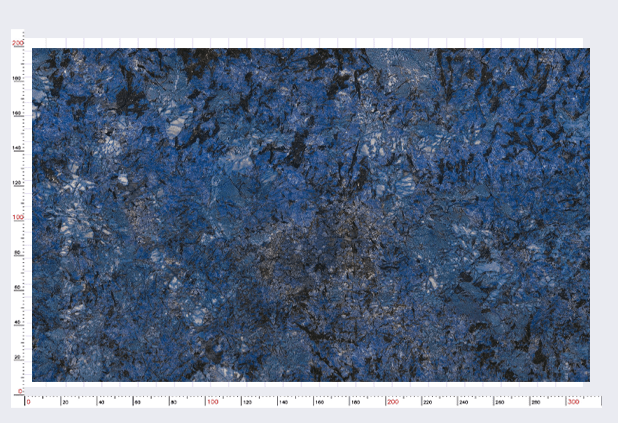

Smart Measurement

Automatic calculation of slab size

1:1 calibration size

QR Code Label

Automatically complete product name, specifications and other parameter settings

Real-time viewing of scanned images

Cloud Storage

Scan data automatically uploaded to cloud, secure and reliable storage

Access anytime anywhere, multi-device synchronization and sharing

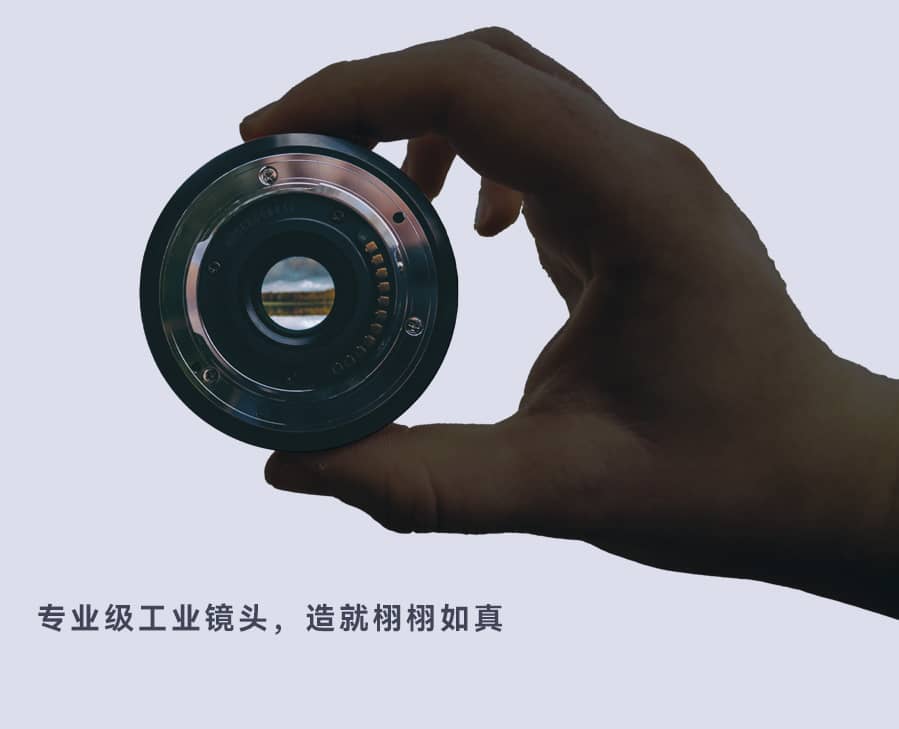

Professional Industrial Camera

Creating Lifelike Reality.

3CCD industrial camera captures 98.7% true colors, 0.01MM sub-millimeter modeling, overcoming water stains/oil dust interference. Designers achieve zero color difference, quality inspectors have no blind spots when zoomed 20x, e-commerce buyers can inspect goods on screen as if touching the real thing.

Diversified, More Adaptable

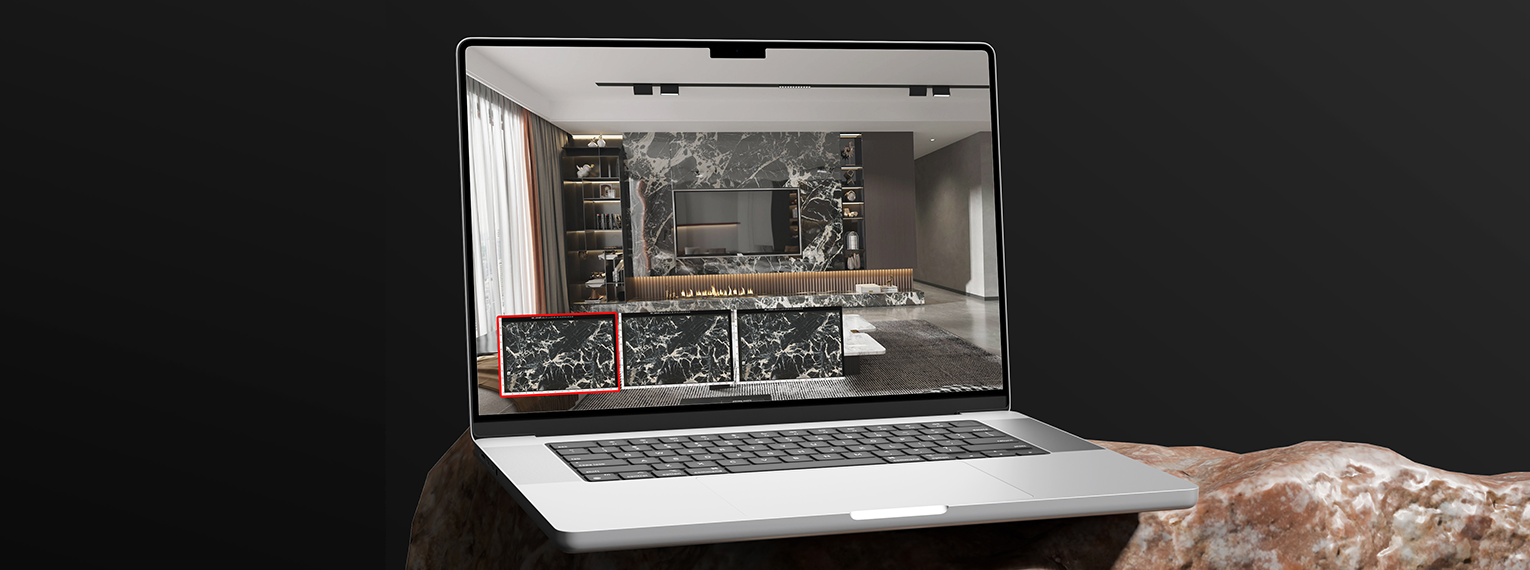

Applicable Package 1: Scenario-Based

Applicable Package 2: Inventory Management

3D dense image automatic generation system with 0.5s fast rendering, 97% material simulation<br>One-click generation of scenario-based stone renderings

Understanding the Industry Better

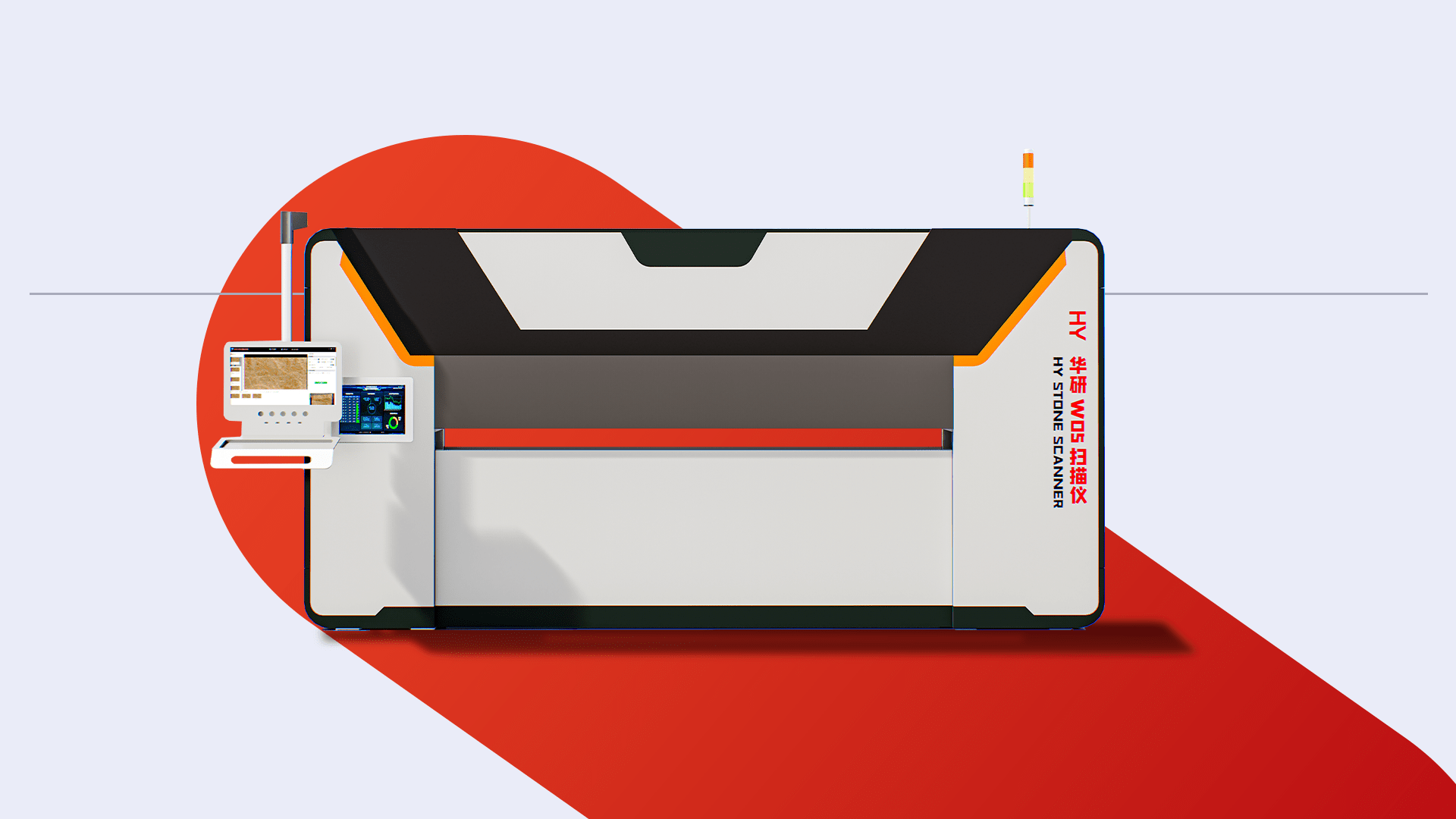

Fifth Generation Scanner.

Image color similarity with actual slab exceeds 98%;

Clear images that show stone detail textures;

Easy installation, plug and play, can be set up on existing polishing lines

Used in slab production workshops:

Powerful software functions, can integrate with Huayan products like slab inventory, stone typesetting, self-design VR software, etc.

Common Choice of Industry Leaders

Thank you for choosing Huayan and becoming my partner

Huayan scanners have successfully served over 600+ stone enterprises to date

HUAYAN HIGH SCANNER

NO.1

2 Industry Firsts, Honor Co-Witnessed

Redefining with Parameters

Industry Benchmark.

Ultra Wide Field of View

2.2M×3.6M extreme large slab scanning, covering all sizes of stone materials.

Pixel-Level Restoration:

96DPI ultra-high definition resolution, 24-bit true color depth, △E≤15 color error, revealing texture details with utmost clarity

Efficiency Revolution:

15M/MIN high-speed scanning, 12×300 hours continuous operation, seamlessly integrated into production lines.

Precision to Micro Level:

±1MM dimensional error control, zero deviation in digital modeling, assisting intelligent stone processing and inventory management.

Industrial Aesthetics

Common Ground with Space Efficiency

Modular Transport:

Can be transported through standard freight elevators after disassembly
Foot Adaptive Leveling:

±15° slope workshop without foundation

Unboxing → Installation → Scanning < 24 hours

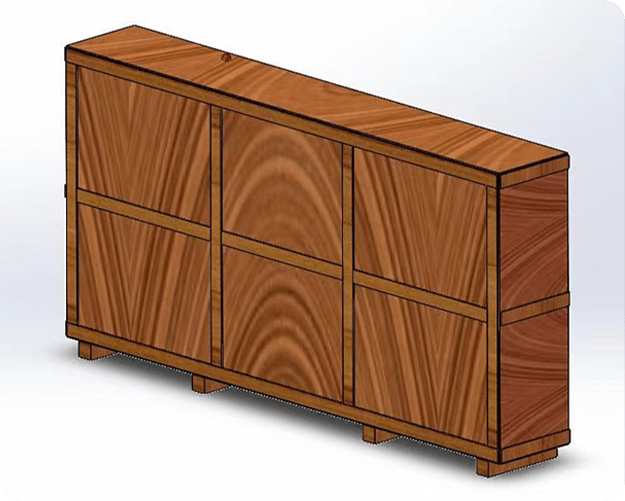

Transport Immune System:

Outer box size 4300×700×2300--fits 6 units in a 40ft high container
Corner protectors + air column matrix cushioning, withstands 3 tons of forklift impact
Moisture resistance level IPX4, no rust risk

Carbon Footprint Transparency:

40% packaging weight reduction
17KG plastic savings per unit
Certified environmentally friendly wood · water-based ink printing

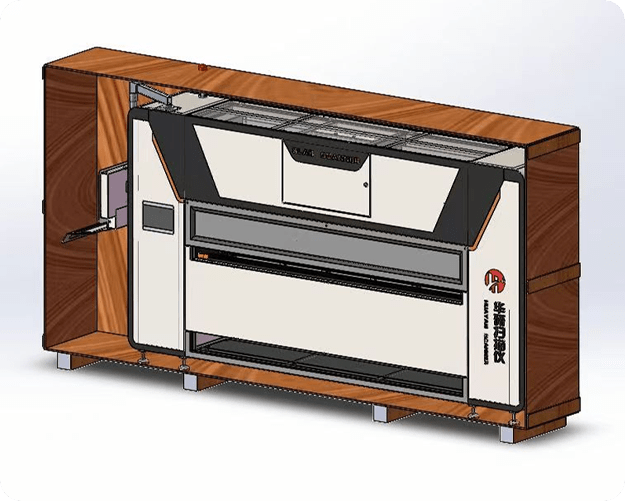

Millimeter-Level Space Compression:

Length 3510MM × Width 600MM × Height 2000MM — 37% smaller volume than traditional scanning equipment, suitable for 99% of existing stone factory workshop flow lines
Detachable track design, complete old production line transformation in 72 hours

Empowering the Entire Stone Industry Chain

Entering the New 'Stone' Era Industry Threshold Baseline

See as You Scan | HD Reproduction | Light-Transmitting Smart Display
